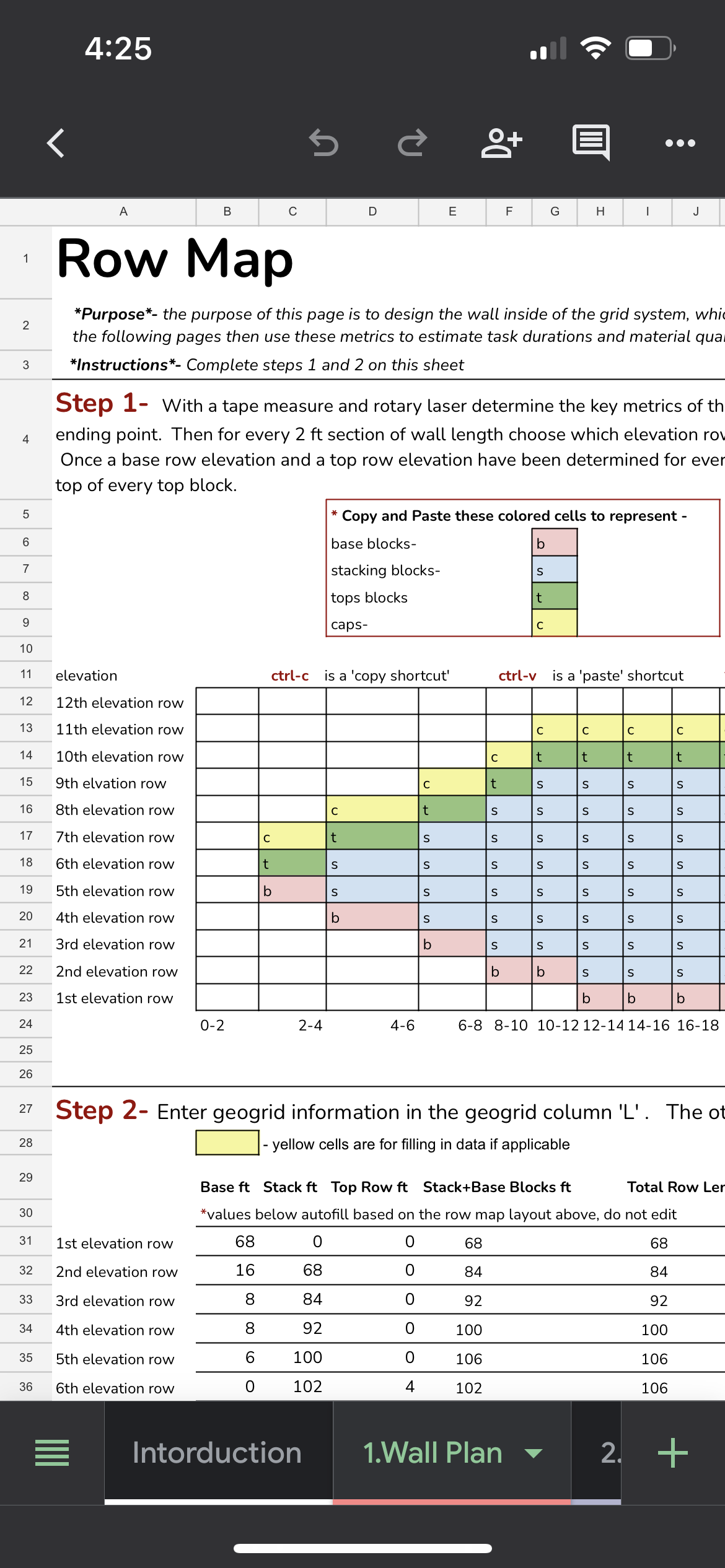

Retaining Wall Estimating and Planning Spreadsheet System and Production Rate Library (Excel file )

Automate tedious tasks and simplify complex calculations!

This spreadsheet prompts the answering of key questions about a proposed project.  That data is then automatically applied to material formulas and production rates resulting in a materials list and duration estimate.  The included production rate library can be fine-tuned over time to fit your unique company.

Includes a production rate library.

Here are the parameters that are not adjustable in this specific spreadsheet.

-6-inch tall block

-3 ft of clean gravel behind the wall (measuring straight back from the back of the wall blocks)

-3 ft deep geogrid layers (1 ft within the block then 3 ft extending out behind the block)

-16-inch deep by 24-inch wide wall base trench 9 inches deep 1 inch minus base placed and compacted in 3 separate lifts

-Clean gravel backfill pile/s placed within 40 ft of the wall

IMPORTANT- This is an excel file for easier downloading but the formulas and functions work best in google sheets.
